Leadshine NEMA34 86mm 1143ozin 8 0NM 20 50VDC 2phase Stepper motor DSP Closed Loop Drive kits
Click to see details
2 phase NEMA34 Leadshine Hybird Servo Motor Drive 86HSM85 E1 HBS86 86mm 1143ozin 8 0NM Close

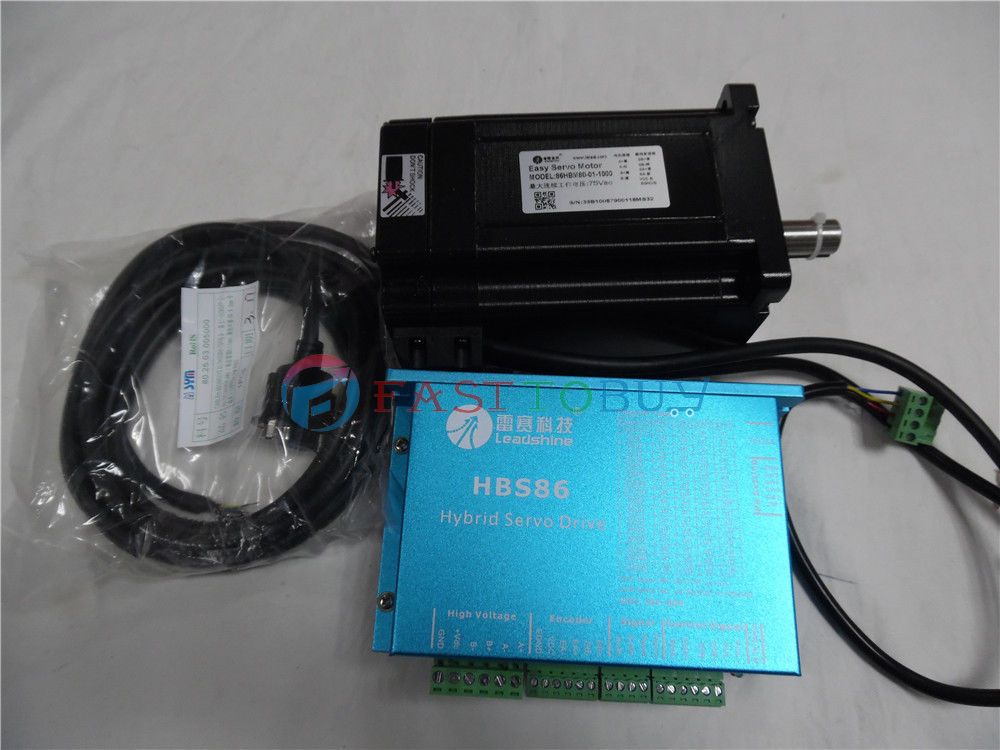

Leadshine NEMA34 86mm 1143ozin 8.0NM 20-50VDC 2phase Stepper motor DSP Closed-Loop Drive kits 86HBM80-01-1000+HBS86

60 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  1439.00 kr / piece
Sale Price:  1310.00 kr / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

Leadshine NEMA34 86mm 1143ozin 8.0NM 20-50VDC 2phase Stepper motor DSP Closed-Loop Drive kits 86HBM80-01-1000+HBS86

HBS86+86HBM80-01-1000

Hybrid Servo Drive HBS86

Descriptions

The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 2-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.

Electrical Specifications

Parameter

Min

Typical

Max

Unit

Input Voltage

20

36

50

VDC

Output Current

0

8.0(Peak)

A

Pulse Input Frequency

0

200

kHz

Logic Signal Current

7

10

16

mA

Isolation Resistance

500

Applications

The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. Its great feature of fast response and no hunting make it ideal for applications such as bonding and vision systems in which rapid motions with a short distance are required and hunting would be a problem. And it is ideal for applications where the equipment uses a belt-drive mechanism or otherwise has low rigidity and you don’t want it to vibrate when stopping.

Hybrid Servo Motor 86HBM80-01-1000

Genneral Introduction

Made of high quality cold roll sheet copper and anti-high temperature permanent magnet, Leadshine’s stepper motors are highly reliable and generate low motor heating. Because of their nice internal damping characteristics, those stepping motors can run very smoothly and have no obvious resonance area within the whole speed ranges.

Eletric

Phase

Series

Step Angle

Models

NEMA

FRAME

Current(A)

Holding Torque

Weight(kg)

Motor length

Two phase

86HBM

1.8 degree

86HBM80-01-1000

34

86

6.0A

8.0N.M/1143 oz-in

4kg

139m

HBS86 Dimension

86HBM80-01-1000 Dimension

86 Series 2 Phase Electircal Connection
