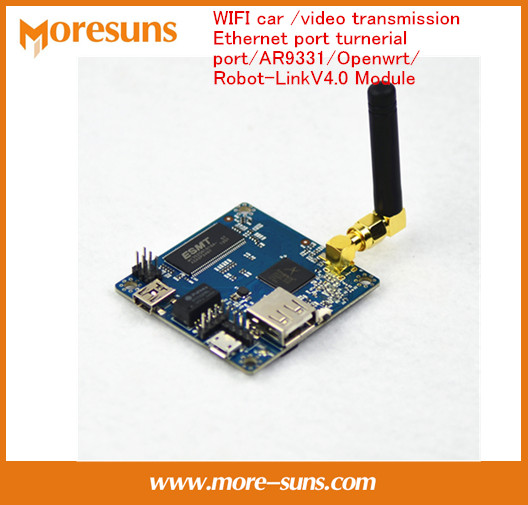

Fast Free Ship Robot Car WIFI car /video transmission/Ethernet port turnerial port/AR9331/Openwrt/Robot-LinkV4.0 Module Description:
– Adopt chip AR9331
– Preset studio open wrt firmware
– Meet standard 802.11 b/g/n protocol, adopt DSSS,OFDM,BPSK,QPSK,CCK and QAM
– The max. speed is up to 150Mbps
– Executive standard: IEEE802.11b/g/n
– Power supply voltage: 5V-+ 5%
– Memory: 32M
– FLASH :4M
– Interface: USB2.0, fast Ethernet port, serial port, I/O port, reset key
– RF input impedance: 50Ohm
– USB differential impedance: 90Ohm
– The crystal frequency: 25MHz
– Temperature: 0~80 deg C
– Storage temperature: -40~85deg C
– Frequency range: 2.402~2.48GHz
– Modulation mode: 802.11 g/n: OFDM
802.11b:CCK (11, 5.5Mbps), QPSK (2Mbps), BPSK (1Mbps)
– Output power: 802.11b: 17dBm -+1.5dBm (11Mbps)
802.11g: 13dBm 1.5dBm (54Mbps)
802.11n: HT20 13dBm 1.5dBm (MCS7 HT20)
HT40 12dBm 1.5dBm (MCS7 HT40)
– Receiving sensitivity: 802.11b: 11M is less than -76dBm
802.11g: 54M is less than -65dBm
802.11n:HT20 MCS7 is less than -64dBm
HT40 MCS7 is less than -61dBm
– Acquisition of USB camera images, sent to the client through Mjpeg format.
– Network – serial port instruction forwarding.
– WIFI video car robot
– Smart household
– Security monitoring
Software download: click ; vertical-align: baseline; color: rgb(0, 102, 204);”>here
Robot Link 4 AR9331, pre brush studio openwrt firmware, supporting video forwarding, data forwarding (two-way). Module is a server, open the TCP connection, port number is 2001, so when DIY program, you need to set the program for Client client mode, and then connect to the 2001 port module to send and receive data. Video port is 8080, the request for the video stream address is: click here
Default management address: 192.168.1.1
Default password: admin
– Match the camera to the module’s USB interface.
– 5V voltage to the module for (if it is a mobile phone charger power supply, remember get the USB board jumper cap removed)
– WIFI module red light began to blink, 30 seconds later stop flashing.
– Computer or cell phone to install our client software click here., and then open the wireless search wifi-robots.com to start the signal,connection.
– Open the client software, choose to open the video can be seen from the video camera, select the WIFI mode can send control commands.
Flash and repair
– Module pre modify AR Openwrt Robot-Link routing system, SSID for the wifi-robots.com-liuviking_MAC address 6 digit
– Firmware download address
– How to re flash system tutorial
– SDK tutorial
– 1 x Module
